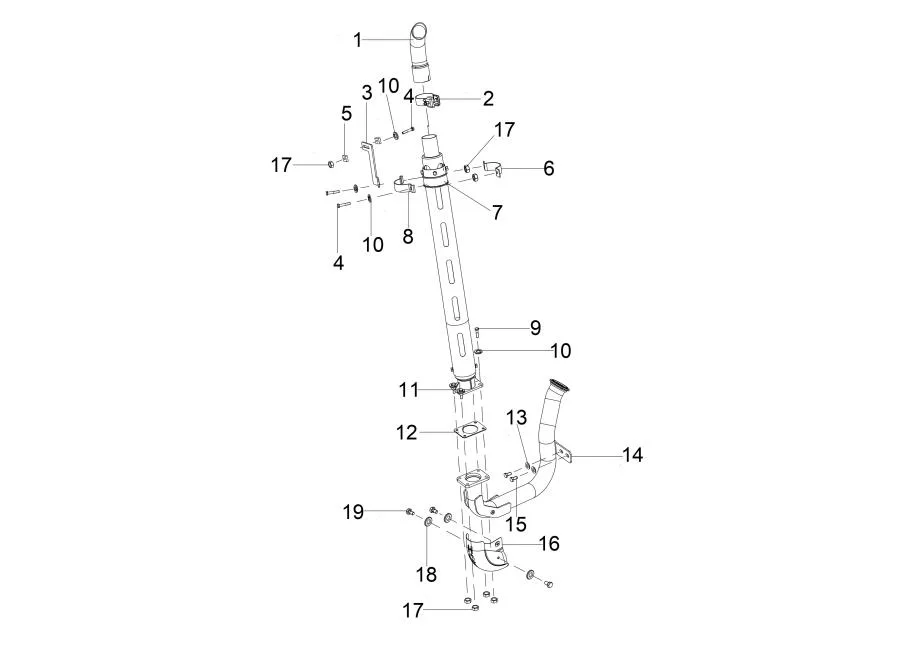

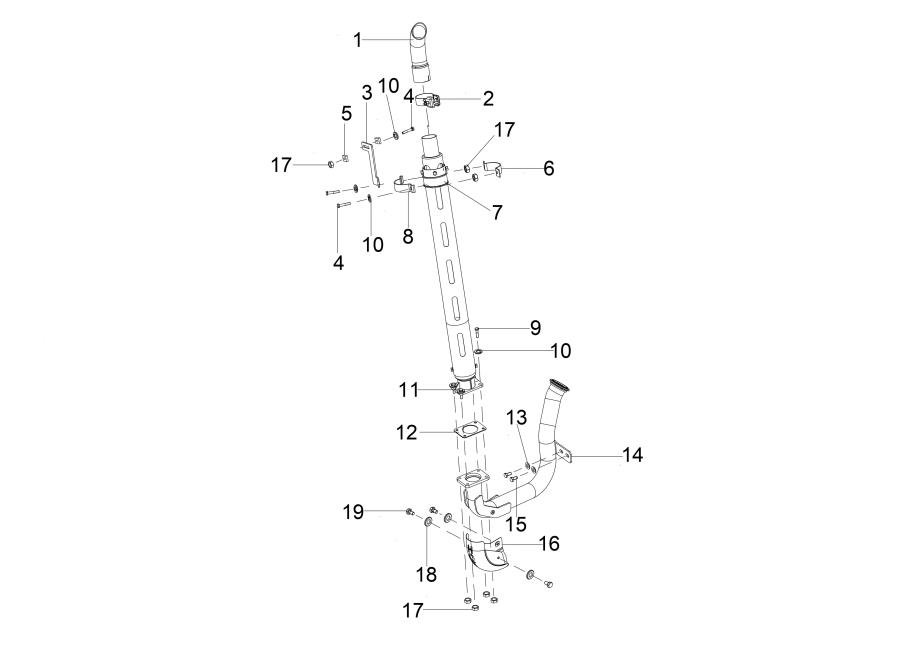

EA-2_EXHAUST UPDRAFT CABIN
S50- STAGE V-01120A-1-1
1
EXHAUST PIPE TOP .
10085114AA | 44.90 € /kpl
1
EXHAUST PIPE TOP
300183031A
2
CLAMP FOR EXHAUST
10085137AA | 19.95 € /kpl
2
CLAMP FOR EXHAUST
300084794A | 19.95 € /kpl
3
STIFFENER
300108569B | 19.95 € /kpl
4
HEX BOLT M8X1.25-45 -8.8 SA4GS
20005548AA | 19.95 € /kpl
5
RUBBER SPACER
300106078A | 19.95 € /kpl
6
CLAMP LOWER HALF ASSY
300111334A | 19.95 € /kpl
7
RUBBER GROMMET FOR EXHAUST
300108967A | 19.95 € /kpl
8
UPPER CLAMP HALF
300111331A | 19.95 € /kpl
9
HEX HEAD BOLT M8X35_8.8 SA4GS
20005597AA | 19.95 € /kpl
10
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
11
EXHAUST PIPE MESH ASSY.
10085113AB | 399.00 € /kpl
12
GASKET FOR EXHAUST
300164739A | 19.95 € /kpl
13
M/C WASHER B10
200000375A | 2.90 € /kpl
14
EXHAUST ELBOW ASSEMBLY. ( CABIN )
300185346D
15
HEX HEAD SCREW M10X20 8.8 SA4GS
20005585AA | 2.49 € /kpl
16
COVER ASSY (EXHAUST ELBOW)
300024698A | 19.95 € /kpl
17
HEX NUT M8
300034282A | 2.49 € /kpl
18
M/C WASHER DIA 6.4*DIA 12.4*1.6
20004941AB | 2.90 € /kpl
19
HEX SCREW M6X10 8.8 SA2JS
20005573AA | 2.49 € /kpl
