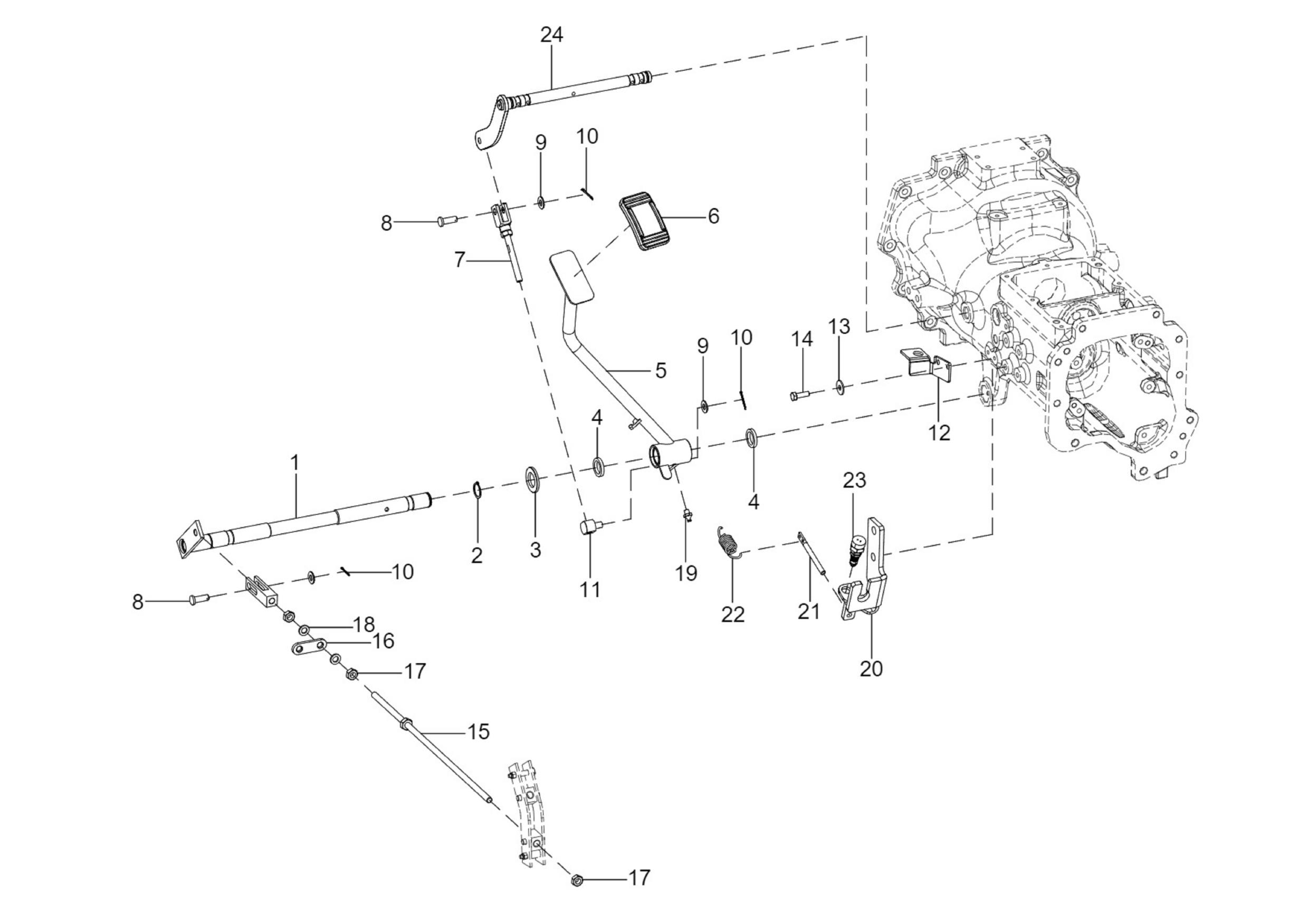

BC-5_CLUTCH PEDAL ASSY.
S26- (9+9) ROPS-18120A-1-1
1
BRAKE PEDAL SHAFT ASSY
300006077B | 99.00 € /kpl
2
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
3
3/CD WASHER DIA 26 *DIA 44*4
20004133AB | 2.90 € /kpl
4
FELT RING
10051143AA | 19.95 € /kpl
5
CLUTCH PEDAL ASSY
300006686D | 44.90 € /kpl
6
BRAKE RUBBER PAD
300038260A | 19.95 € /kpl
7
CLUTCH LINKAGE ASSY
300135719A | 19.95 € /kpl
8
LINK PIN
10005187AA
9
M/CD WASHER 10.5*21*2
20005625AA | 2.90 € /kpl
10
SPLIT PIN DIA 2*25
20005526AA | 19.95 € /kpl
11
ADJUSTABLE PUSH ROD PIN LH
300131774A | 19.95 € /kpl
12
MTG BKT FOR SAFETY SWITCH
300077087C | 19.95 € /kpl
12
MTG BKT FOR CLUTCH SAFETY SWITCH
300006798A
13
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
14
HEX HEAD SCREW M8X1.25-25 -8.8 SA4GS
20005564AA | 2.49 € /kpl
15
BRAKE TIE ROD 9+9
300075862B | 19.95 € /kpl
16
BKT FOR TIE ROD
300030145A | 19.95 € /kpl
17
HEX NUT M10 -8 SA4GS
20003357AF | 2.49 € /kpl
18
SPRING WASHER B-10 TYPE A IS:3067-1972
20005518AA | 2.90 € /kpl
19
CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009
20003460AC | 19.95 € /kpl
20
WIRE HOLDING BKT ASSY
300175245A | 19.95 € /kpl
21
TENSION ROD SPEED CONTROL
10096518AA | 19.95 € /kpl
22
TENSION SPRING (BRAKE ASSY.)
10010523AB | 19.95 € /kpl
23
PLUNGER SWITCH NO
300157154B | 44.90 € /kpl
24
C.A.SHAFT ASSY
300000918A | 27.90 € /kpl
