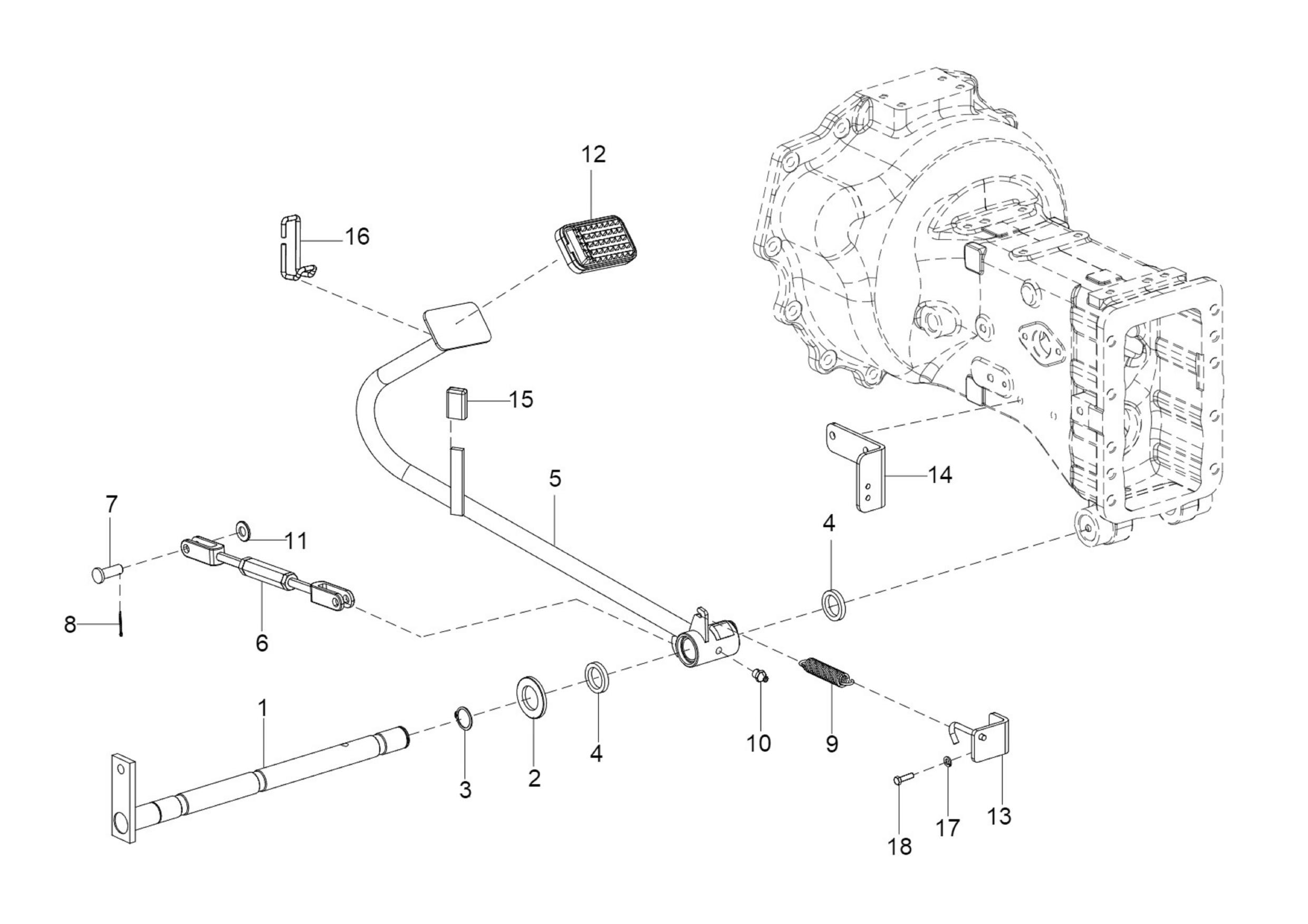

BC-4_CLUTCH PEDAL ASSY
S26- (6+2) REGULAR-18120A-1-1
1
BRAKE PEDAL SHAFT 24HP
10052621AB | 29.90 € /kpl
2
3/CD WASHER DIA 26 *DIA 44*4
20004133AB | 2.90 € /kpl
3
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
4
FELT RING
10051143AA | 19.95 € /kpl
5
CLUTCH PEDAL ASSY
10053337Bc
6
ADJUSTABLE TIE ROD ( CLUTCH PEDAL)G.T.
10051114AA
6
ADJUSTABLE TIE ROD ( CLUTCH PEDAL)G.T.
10051114AB | 19.95 € /kpl
7
LINK PIN
10005187AA
7
LINK PIN
10087974AA | 19.95 € /kpl
8
SPLIT PIN DIA 2*25
20005526AA | 19.95 € /kpl
8
SPLIT PIN DIA 2*25
20003676AB
9
TENSION SPRING
10007881BA
9
TENSION SPRING
10007881BB | 19.95 € /kpl
10
CONICAL HEAD GRESE NIPPLE B M8X1 IS:4009
20003460AC | 19.95 € /kpl
11
CD WASHER
20000100AA | 2.90 € /kpl
11
M/CD WASHER 10.5*21*2
20005625AA | 2.90 € /kpl
12
PADEL RUBBER PAD
10053401AC
12
PADEL RUBBER PAD
10053401AD | 19.95 € /kpl
13
CLUTCH SPRING MTG BRACKET
300176668A | 19.95 € /kpl
14
CLUTCH MOUNTING BRACKET
10053451AB | 19.95 € /kpl
15
RUBBER SLEEVE
10005009AB
15
RUBBER SLEEVE
10005009AC | 19.95 € /kpl
16
CLUTCH PEDAL LOCK
300320038A
17
SPRING WASHER B-6 TYPE A IS:3067-1972
20005516AA | 2.90 € /kpl
17
SPRING WASHER B-6
4030400006 | 2.90 € /kpl
18
HEX FLANGE SCREW M6*1*16-8.8 SA4JS
20003517AB | 2.49 € /kpl
18
HEX FLANGE SCREW M6*1*16 -8.8 SA4GS
20005542AA | 2.49 € /kpl
