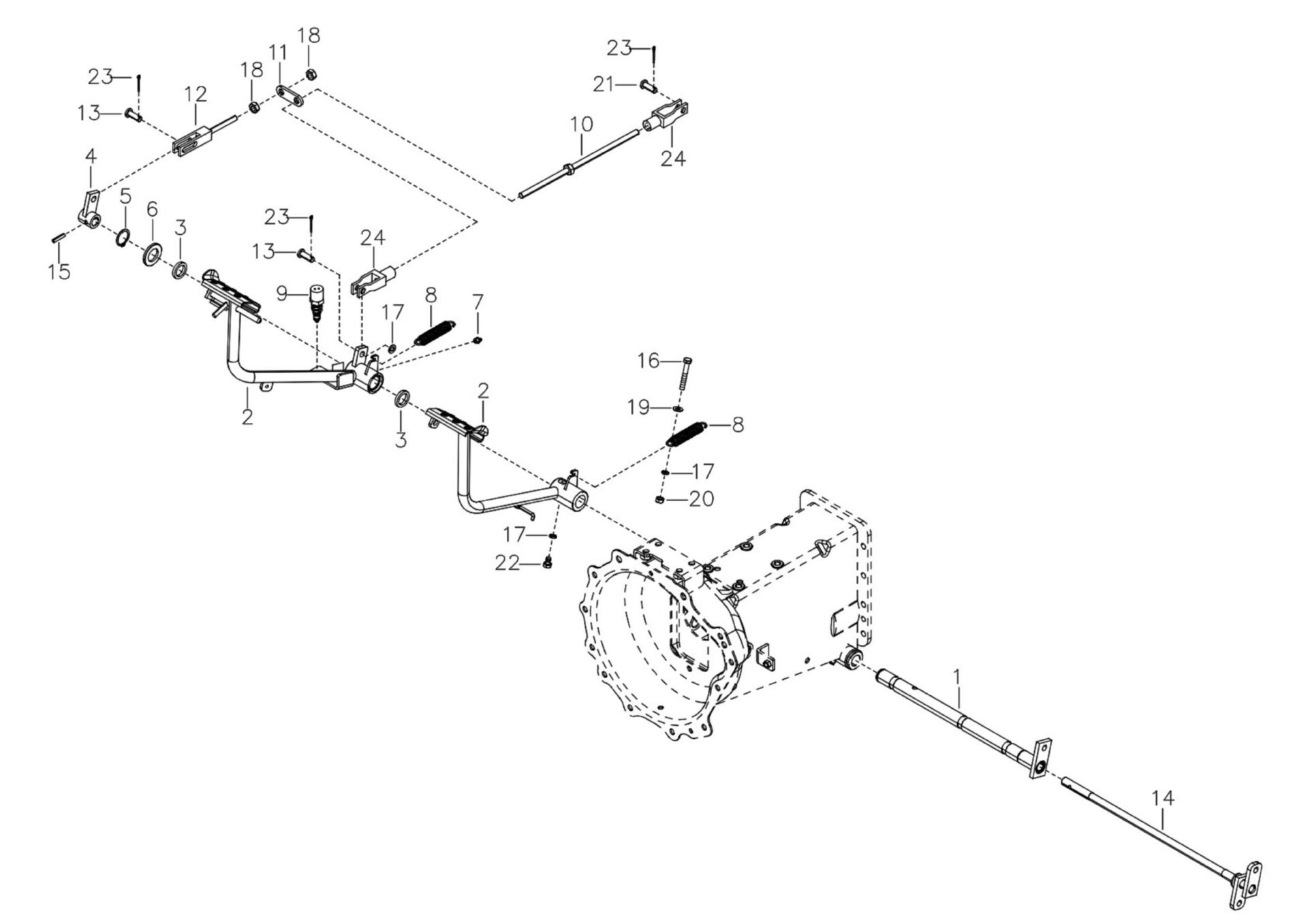

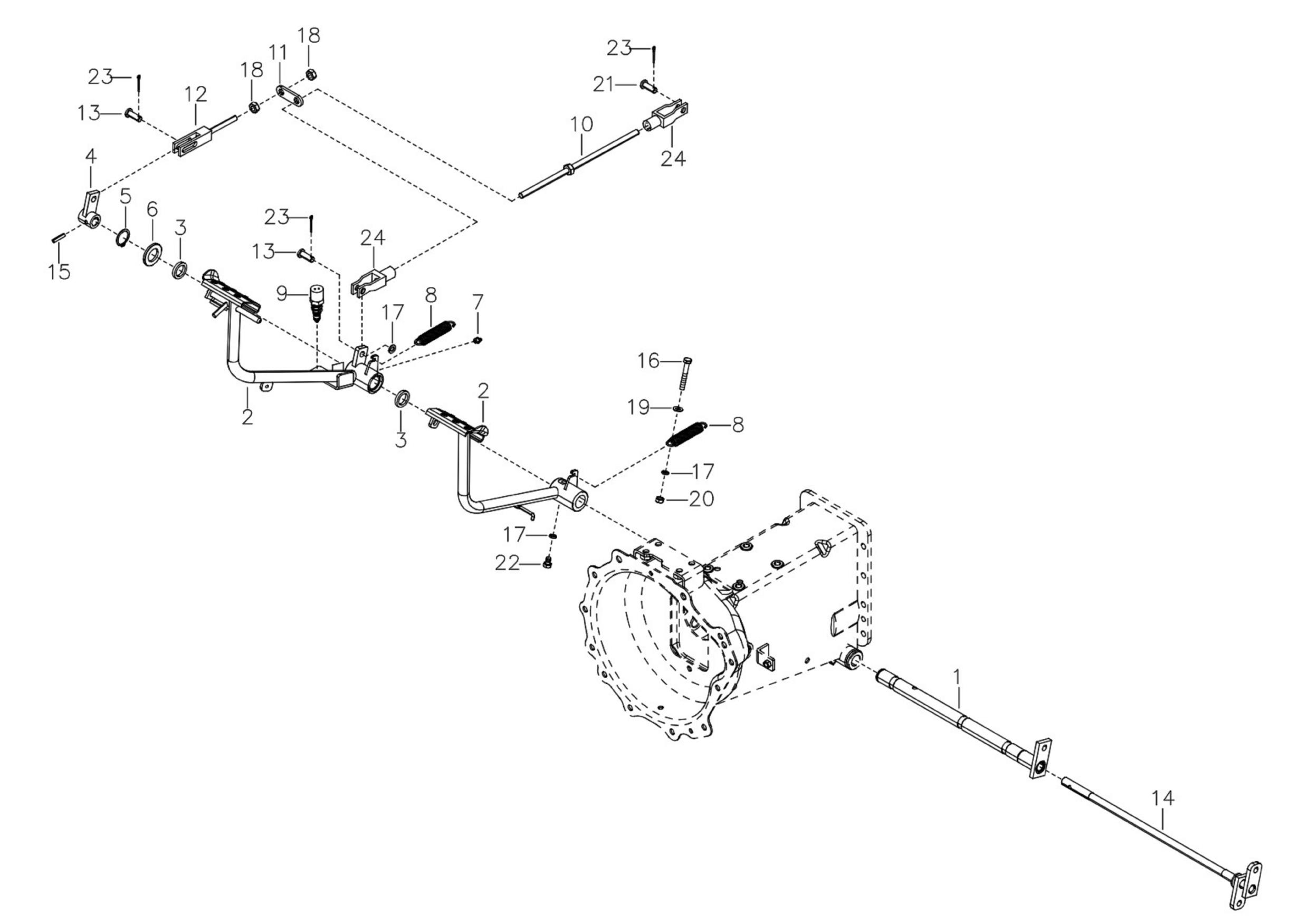

BC-2_BRAKE PEDAL ASSY.
S20- WITH MHI ENGINE (6+2)-18111A-1-1
1
BRAKE PEDAL SHAFT
10051037BA | 27.90 € /kpl
1
BRAKE PEDAL SHAFT
300033905A | 84.90 € /kpl
2
ASSY BRAKE PADEL LH & RH
10052352BB | 84.90 € /kpl
3
FELT RING
10051143AA | 19.95 € /kpl
4
LUG ASSY
300032935A | 19.95 € /kpl
5
EXTERNAL CIRCLIP A – 25
20004134AA | 19.95 € /kpl
6
3/CD WASHER DIA 26 *DIA 44*4
20004133AB | 2.90 € /kpl
6
M/CD WASHER DIA26*DIA44*4
20005623AA | 2.90 € /kpl
7
GREASE NIPPLE WITH CAP M8*1
4043200008 | 19.95 € /kpl
8
TENSION SPRING
10007881BA
8
TENSION SPRING
10007881BB | 19.95 € /kpl
9
PLUNGER SWITCH NC
300119996A | 44.90 € /kpl
10
TIE ROD
10052427AA
10
TIE ROD
300033718A
10
TIE ROD
300033718B | 19.95 € /kpl
11
BKT FOR TIE ROD
300030145A | 19.95 € /kpl
12
TIE ROD ASSY
300030663A | 19.95 € /kpl
13
PIN FOR BRAKE ACTUATOR FORK
300031334A | 19.95 € /kpl
13
PIN FOR BRAKE ACTUATOR FORK
10003800AB
14
PARKING BRAKE SHAFT ASSY
300033224A | 27.90 € /kpl
15
SPRING COTTER SLEEVE(DIA 6X28)
20004150AA | 19.95 € /kpl
16
HEX BOLT M10*1.5*55 8-8 SA4GS
20003491AD | 19.95 € /kpl
16
HEX HEAD BOLT M8X1.25X55
20004136AA
16
HEX HEAD BOLT M8X55_8.8 SA4GS
20005600AA | 19.95 € /kpl
17
SPRING WASHER B-8
4030400008 | 2.90 € /kpl
17
SPRING WASHER B-8 TYPE A IS:3067-1972
20005517AA | 2.90 € /kpl
18
HEX NUT M10 -8 SA4GS
20005503AA | 2.49 € /kpl
18
HEX NUT M10 -8 SA2JS
20003357AB | 2.49 € /kpl
19
PLAIN WASHER DIA 8.4 *DIA 17*1.6
20004935AB | 2.90 € /kpl
20
HEX NUT M8X1.25 -8 SA4GS
20005504AA | 2.49 € /kpl
20
HEX NUT M8X1.25 -8 SA4NS
200000391A | 2.49 € /kpl
20
HEX NUT M8X1.25 -8 SA2JS
20003355AB | 2.49 € /kpl
21
LINK PIN
10005187AA
22
HEX SCREW M8X1.25X12 8.8 SA3NS
20004356AA | 2.49 € /kpl
23
SPLIT PIN DIA 2X16
20004382AA
23
SPLIT PIN DIA 2*16
300031807A | 19.95 € /kpl
24
ACTUATOR FORK ASSY RH
300089440A | 19.95 € /kpl
